TLGT Vertical ring and pulsating high gradient magnetic separator is a new product developed independently by Tianli. It combines the characteristics of international advanced high intensity magnetic separators, which is so far the high intensity magnetic

|/PRODUCT DETAIL

Product introduction

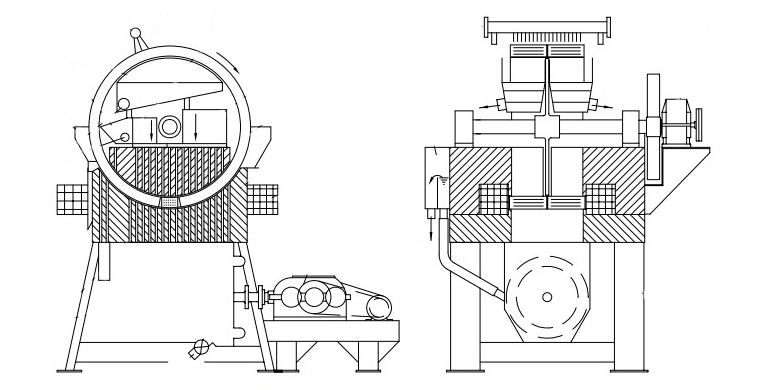

TLGT Vertical ring and pulsating high gradient magnetic separator is a new product developed independently by Tianli. It combines the characteristics of international advanced high intensity magnetic separators, which is so far the high intensity magnetic separator of best performance and most advanced technology. This product utilizes vertical ring rotation, pulsating beneficiation and high frequency vibrator, and it has no magnetic medium jam problem in flat ring high intensity magnetic separator and flat ring high gradient magnetic separator.

It has the advantages of large beneficiation ratio, high security and convenient operation etc. This product realizes both high beneficiation ratio and high recycle ratio in separating weak magnetic minerals.

Application field

1. Updating Ferrous Metals: Martite, Hematite, Siderite, Chromite, Ilmenite, Manganese, Etc.

2. Separating Non-Ferrous Metals: Wolframite and Quartz, Pyrrhotite and Cassiterite, Wolframite and Cassiterite, Limonite Purifying, Scheelite, Wolframite and Garnet, Etc.

3. Recovering Rare Earth: Tantalum and Niobium, Lepidomelane, Monazite, Etc.

4. Brightening Non Metals: Quartz, Feldspar And Kaolin for Ceramics, Sillimanite, Cassiterite, Andalusite, Kyanite for Refractory, and Separating Impurities From Hornblende, Mica, Tourmaline, Garnet, Etc,

Technical features

1. Vertical Ring Rotation & Pulsating Beneficiation

2. High Frequency Vibration Mechanism

3. Wide Range of Feed Particle Size

4. Multi-Gradient Matrixes & Liquid Level Control System.

These technologies improve the grade of magnetic concentrate and recovery.

5. Frequency Conversion Step-less Adjustment for Rotary Speed & Vibrating Frequency.

6. No Stepper Phenomenon of Rotary Rings

The use spot


|/VIDEO PRODUCT

|/ RELATED EQUIPMENT

TLSGK Automatic High Gradient Perm-magnetic Separator

TLGP Plate Type High Gradient Magnetic Separator

TLNT Inner Tank Type High Gradient Magnetic Separator

TLSL Water cooling electromagnetic automatic slurry magnetic separator

|/TECHNICAL PARAMETER

Model Specifications	TLGT-500	TLGT-750(Ⅰ)	TLGT-750(Ⅱ)	TLGT-1000	TLGT-1250	TLGT-1500	TLGT-1750	TLGT-2000	TLGT-2500	TLGT-3000
Ring diameter(mm)	500	750	750	1000	1250	1500	1750	2000	2500	3000
Rotating speed of Ring(r/min)	0.3-3	3	2-4	2-4	2-4	2-4	2-4	2-4	2-4	2-4
Ore-feeding size(mm)(-200mesh%)	-1.0	-1.0	-1.0	-1.2(30-100)	-1.2(30-100)	-1.2(30-100)	-1.2(30-100)	-1.2(30-100)	-1.2(30-100)	-1.2(30-100)
Ore-feeding concentration(%)	10-40	10-40	10-40	10-40	10-40	10-40	10-40	10-40	10-40	10-40
Slurry put through (m³/h)	0.25-0.5	0.5-1.0	5-10	12.5-20	20-50	50-100	75-150	100-200	200-400	350-650
Capacity(t/h)	0.03-0.125	0.06-0.25	2-4	4-7	10-18	20-30	30-50	50-80	100-150	150-250
Backgroup Field(T)	1.0	1.0	1.0	1.0	1.0	1.0	1.0	1.0	1.0	1.0
Energizing current(A)	1300	1100	860	650	900	950	1200	1200	1400	1400
Energizing Voltage(V)	12	16	17.5	26.5	31	37	38	43	45	62
Energizing Power(KW)	16	18	15	17	28	35	46	52	63	87
Ring Power(KW)	0.37	0.55	0.55	1.1	1.5	3	4	5.5	11	18.5
Pulsating Power(KW)	0.37	0.75	1.5	2.2	2.2	4	4	7.5	11	18.5
Pulsating stroke(mm)	0-50	0-50	0-20	0-30	0-20	0-30	0-30	0-30	0-30	0-30
Pulsating frequency (r/min)	0-400	0-400	0-400	0-300	0-300	0-300	0-300	0-300	0-300	0-300
Water pressure(Mpa)	0.1-0.2	0.1-0.2	0.1-0.2	0.2-0.3	0.15-0.3	0.2-0.3	0.2-0.3	0.2-0.3	0.2-0.4	0.2-0.4
Water consumption (m³/h)	0.75-1.5	1.5-2.5	5-8	10-20	30-45	60-90	80-120	100-150	200-300	350-530
Consumption of cooling water(m³/h)	1.5-2	1.5-2	1.5-2	2-2.5	2.5-3	3-4	4-6	5-6	6-7	8-10
Machine Weight(T)	1.5	3	4	6	14	20	35	50	105	175
Weight of heaviest part(T)	0.3	0.6	1	2.22	4	5	11	14	15	25
Dimension (L×W×H)(mm)	1800×1400×1320	2000×1360×1680	2000×1360×1680	2700×2000×2400	3200×2340×2700	3600×2900×3200	3900×3300×3800	4200×3550×4200	5800×5000×5400	6600×5300×6400
